Hosco TEES
Hosco compact Tees product family
Hosco compact Tees product family
Overview
Hosco compact Tees product family is designed for use in piping systems to provide sampling or monitoring ports, or to provide multiple inlet or outlet ports to name a few uses. The Tees are available in standard tee and bulkhead tee configurations, and generally in 1/4 or 3/8 NPS/BSPP(PF) male or female swivel nut, 1/4 or 3/8 NPT/ BSPT(PT), 3/8 or 1/2 Tube Stubs or metric equivalents, 3/8 TF or BTF compression or bulkhead compression (or metric equivalents) styles, or JIC style. Our flexible designs allow any combination of these to meet the application.

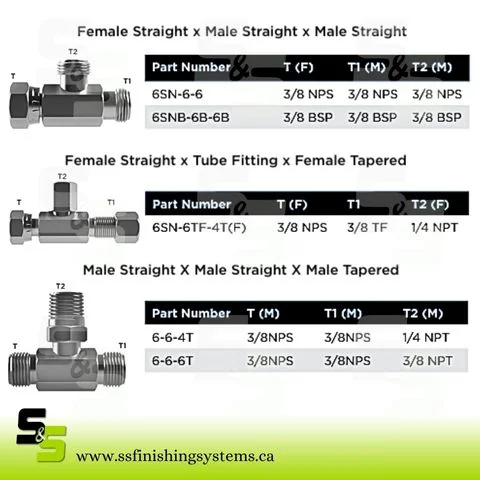

| SKU Variant | 6-6-6: 3/8NPS(M) x 3/8NPS(M) x 3/8NPS(M), 6B-6B-6B: 3/8BSP(M) x 3/8BSP(M) x 3/8BSP(M), 6-6-6SN: 3/8NPS(M) x 3/8NPS(M) x 3/8NPS(F), 6SN-6SN-6SN: 3/8NPS(F) x 3/8NPS(F) x 3/8NPS(F), 6SNB-6SNB-6SNB: 3/8BSP(F) x 3/8BSP(F) x 3/8BSP(F), 6SN-6-6: 3/8NPS(F) x 3/8NPS(M) x 3/8NPS(M), 6SNB-6B-6B: 3/8BSP(F) x 3/8BSP(M) x 3/8BSP(M), 6SN-6TF-4T(F): 3/8NPS(F) x 3/8TF(M) x 1/4NPT(F), 6-6-4T: 3/8NPS(M) x 3/8NPS(M) x 1/4 NPT(M), 6-6-6T: 3/8NPS(M) x 3/8NPS(M) x 3/8 NPT(M) |
|---|
