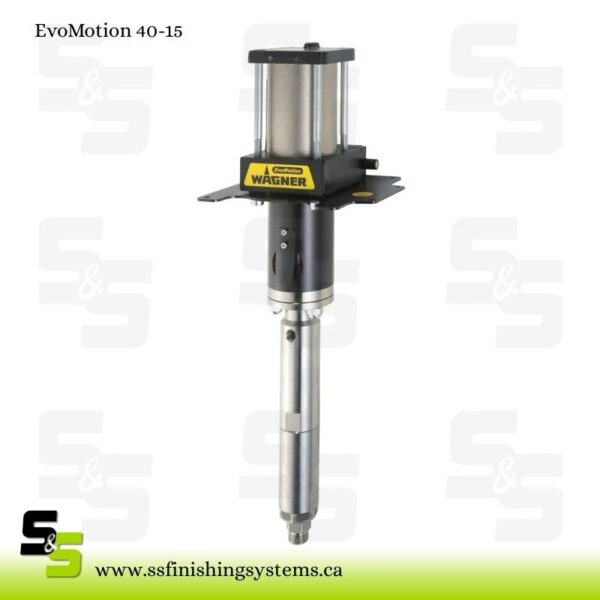

EvoMotion 40-15

High-pressure piston pump

The EvoMotion 40-15 high-pressure piston pump can be used for AirCoat and airless applications with up to 320 bar and one gun.

Overview

High-pressure piston pump, stainless steel, for airless and AirCoat applications with one spray gun.

Key Feature

Excellent coating results

EvoMotion piston-pumps work highly efficient to ensure excellent coating results with their even material flow at constant pressure.

Robust and reliable

Fluid sections are entirely made from stainless steel. High quality and self-adjusting packings reduce wear to a minimum. The air-motor is nearly maintenance-free and does not need any additional lubricants.

Individual set-up

With the variant-configurator, pumps, accessories and components, right up to ready-to-use spraypacks can be selected according to the coating task.

Upside down – extremely compact

The “Compact” version impresses with its very low cleaning effort. The upside down pump allows the smallest internal volume for minimal time and material expenses during flushing! Ideal for mobile use and quick cleaning or color change.

Technical Data

Technical data
Application area	Metal coating, Wood coating, Demolding and separating
Application technique	Airless, AirCoat
Processable materials	Water-borne, Solvent-borne
Material wetted parts	Stainless steel, PE, PTFE, Hard chrome
Weight	9 kg
Material outlet	A NPS 1/4”
Air inlet pressure	2.5-8 bar
Max. material pressure	320 bar
Max. volumetric flow	0.9 l/min
Volumetric flow per double stroke	15 cm³
Max. stroke rate	60 1/min
Sound level at 6 bar air pressure	74 dB(A)
Max. allowed inclination	10 °
Transmission ratio	40 :1
Material pH value	3.5-9 pH
Material temperature	5-80 °C
