DV1s Smart and Spot Repair Spray Gun
The DV1s Spray Gun provides consistency and optimization in spraying the latest materials in the market today. The Spray Gun features three new air caps delivering superior high-efficiency performance for a perfect…
The DV1s Spray Gun provides consistency and optimization in spraying the latest materials in the market today. The Spray Gun features three new air caps delivering superior high-efficiency performance for a perfect invisible repair finish.
Key Feature
- Deliver ultimate Smart/Spot repair application performance
- Sprays consistent and homogeneous spray patterns
- Atomizes effortlessly with a selection of finely tuned air cap and fluid nozzle setups
- Provides maximum comfort and easy use from set-up through the entire spraying process
- Provides maximum comfort and ease of use with right the first time results
- Improved transfer efficiency saving time, money, and repair costs per job
Includes
- DV1s Smart/Spot Repair Gun Assembly
- New DV1-M1, DV1-S1, or DV1-S2 Air Cap
- 2 Fluid Nozzles Sizes in Each Kit
- 4 oz/125ml White Acetyl Gravity Cup
- Maintenance Tool Kit: Valve Tool, Torx Driver, Fluid Nozzle Wrench
AIR CAP
DV1 Air Caps
| Air Cap P/N | Air Cap Type | Rec Air Inlet Pressure | Air Consumption | Fluid Flow | Pattern Height |
| 704451 | DV1-M1 Micro (HVLP) | 1.0 bar (15 psi) | 50 L/min (1.8 scfm) | 1 – 50 g/min | 60 mm (2.4 in) |
| 704452 | DV1-S1 Plus (HVLP) | 2.0 bar (29 psi) | 115 L/min (4.1 scfm) | 5-125 g/min | 200 mm (7.9 in) |
| 704453 | DV1-S2 (HVLP) | 2.0 bar (29 psi) | 130 L/min (4.6 scfm) | 5 – 125 g/m | 180 mm (7.1 in) |
Download
DV1 Smart Repair Gun Parts List

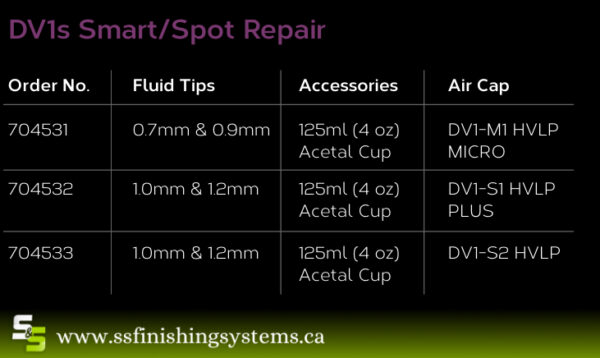

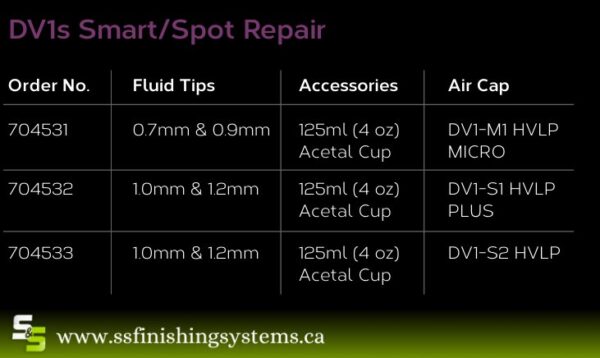

| SKU Name | 704533: DV1 S HVLP KIT, 704532: DV1 SHVLP PLUS KIT, 704531: DV1 S MICRO GRAVITY GUN & CUP KIT |
|---|
