Certified Explosion-Proof Vacuum – Model EXR

THE ECONOMICAL ONE Housekeeping Compliance Made Simple. HafcoVac Certified Explosion- Proof Industrial Vacuums are the perfect solution for demanding environments. Ready to work on the biggest clean-up jobs right…

SKU: product-VC2-parent Category: Brand:

THE ECONOMICAL ONE

Housekeeping Compliance Made Simple.

HafcoVac Certified Explosion- Proof Industrial Vacuums are the perfect solution for demanding environments. Ready to work on the biggest clean-up jobs right from the box, all you supply is the air.

Overview

Housekeeping Compliance Made Simple.

HafcoVac Certified Explosion- Proof Industrial Vacuums are the perfect solution for demanding environments. Ready to work on the biggest clean-up jobs right from the box, all you supply is the air.

HAFCO Vacuums are ATEX cn 2, Groups A, B, C and D T6 and Class I, Division 1, Class II, Division 1, Groups E, F, G, Hazardous Locations as defined in the National Electric Code (NFPA 70). Designed and built to the highest standards, our vacuums also carry a Lifetime Warranty.

Key Feature

  • Anti-Static/Explosion-Proof
  • Premium HEPA Filtration Included
  • 5x more suction than electric
  • Up to 50 feet of
  • Overhead Cleaning Attachments
  • Use in Wet & Dry Environments
  • 30 or 55 Gal Drum
  • 20′ Static-Conductive Included with universal fittings
  • 25′ or 20′ Included
  • 1.5″ or 2″ Vacuum Included* (depending upon application)
  • Grounded Tools
  • 25′ Grounding Cable
  • Endorsement Certificate (for use in Combustible Dust Environments)

Weight/Dimentions

Weight 120lbs
Dimensions 26x26x42
48 CFM 85 CFM 185 CFM
Drum Size 30 Gal 55 Gal
Vacuum Diamater 1 1/2″ 2″

Compressor Requirements

Air Requirements Min. Compressor Size Length Max (feet) H20 LIFT (inches) Hg (inches)
48 CFM 10 HP Min. 25′ 144″ 15″
85 CFM 20 HP Min. 50′ 180″ 17″
185 CFM Dual Venturi Models – 40 HP Min. 100′ 264″ 19″

While HafcoVac vacuums will operate when doesn’t meet specifications, please be aware that performance will be greatly reduced. If you are unsure if your facility’s is capable of delivering the minimum requirements, choose the next size down. A 60 CFM pneumatic vac properly supplied will outperform a larger undersupplied model.

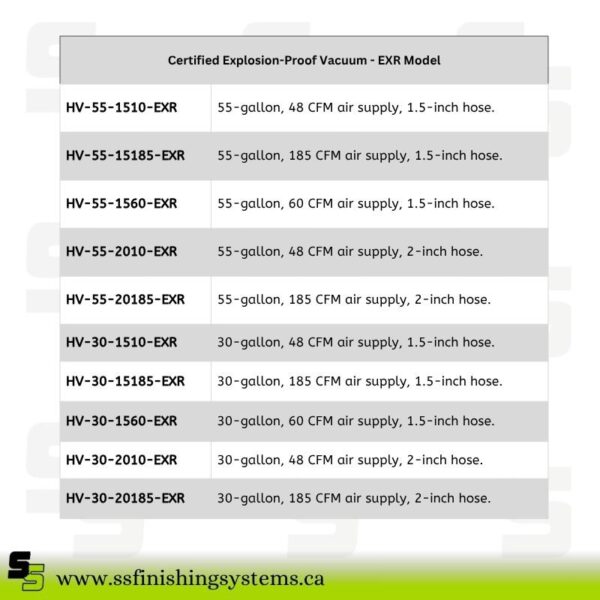

SKU Name

HV-30-1510-EXR: 30-Gal, 48 CFM, 1.5", HV-30-15185-EXR: 30-Gal, 185 CFM, 1.5", HV-30-1560-EXR: 30-Gal, 60 CFM, 1.5", HV-30-2010-EXR: 30-Gal, 48 CFM, 2", HV-30-20185-EXR: 30-Gal, 185 CFM, 2", HV-55-1510-EXR: 55-Gal, 48 CFM, 1.5", HV-55-15185-EXR: 55-Gal, 185 CFM, 1.5", HV-55-1560-EXR: 55-Gal, 60 CFM, 1.5", HV-55-2010-EXR: 55-Gal, 48 CFM, 2", HV-55-20185-EXR: 55-Gal, 185 CFM, 2"
