Overview
The new Binks Trophy AA combines industry experience, design and technology in our all-new Air Assisted Airless spray gun. Designed to handle the toughest of applications, the Trophy AA is purpose built to maximise spray quality, increase efficiency, reduce downtime and be environmentally responsible, while providing the light-weight, ergonomically sculpted fit and feel that operators demand.
Key Feature
-
High-Quality Finish: Industry-leading atomization for superior results.
-
Durable Build: Solid forged body for longevity.
-
Easy Maintenance: Quick-clean coating, in-line needle for fast repairs, and one-tool trigger removal.
-
Ergonomic & Comfortable: Lightweight with an ergonomic handle and light trigger-pull to reduce strain and fatigue.
-

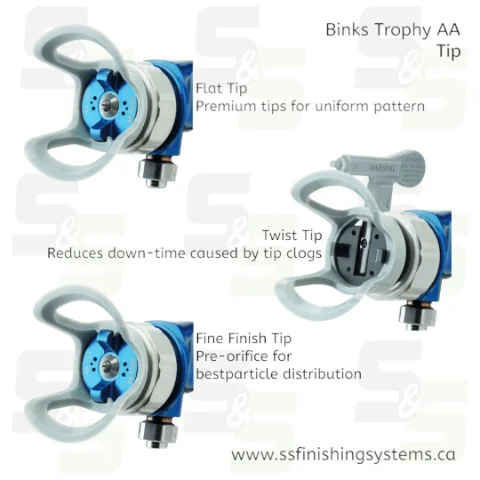

Versatile Options: Wide selection of flat, fine-finish, and twist tips, with HVLP and LVMP technologies for varied spray choices.
-
Corrosion Resistance: Anodized aluminum air caps for durability.
-
Efficient Performance: Adjustable packing without disassembly and a unique twist tip for quick clog removal.
Technical Specifications
Two pressure models available

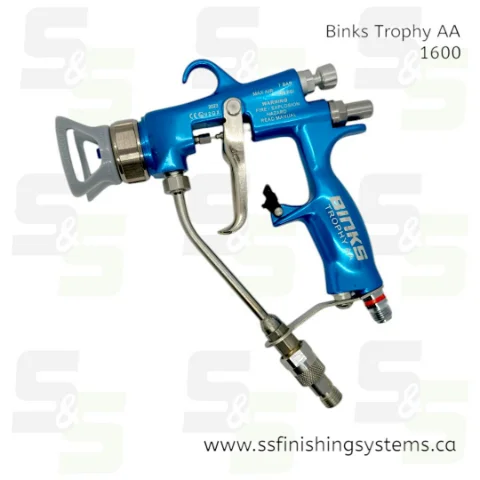

1- Trophy AA 1600 (110 bar / 1600psi)
with PEEK fluid seat: Ideal for wood, metal, commercial vehicle, and aerospace applications.

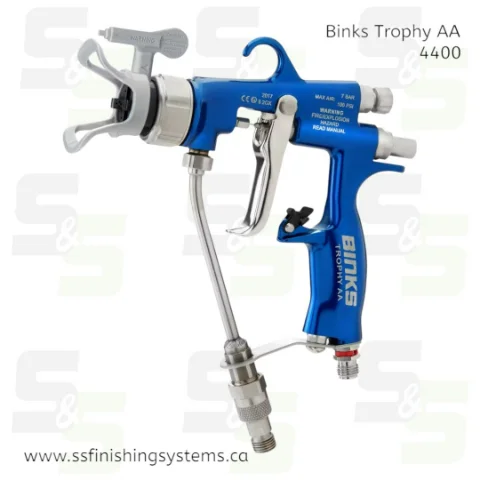

2- Trophy AA 4400 (303 bar / 4400psi)
with Tungsten Carbide seat: For high viscosity fluids and heavy industrial applications
Model Trophy AA1600 Trophy AA4400
Mximum fluid pressure: 110 bar [1,600 psi] 303 Bar (4,400 psi)
Gun Body material: Forged Aluminium Forged Aluminium
Fluid Path material: Stainless Steel Stainless Steel
Fluid Seat Material: PEEK Tungsten Carbide
Fluid inlet connection: 1/4†NPS (m) 1/4†NPS (m)
Air inlet connection: 1/4†BSP / NPS (m) 1/4†BSP / NPS (m)
Suitable For These Materials
• Solvent OR Waterborne Coatings
• Stains varnishes and lacquers
• Inks and dyes
• Sealers and undercoats
• Synthetic and enamel paints
• Plus many others…
