Binks Standard Flat Tip Assembly

$217.30

The Binks Standard Flat Tip Assembly is engineered to deliver consistent, high-quality spray performance when used with Binks AA series air-assist airless guns (models AA4400M, AA1600M, etc.).

SKU: product-tips2-simple Category: Brand:

The Binks Standard Flat Tip Assembly is engineered to deliver consistent, high-quality spray performance when used with Binks AA series air-assist airless guns (models AA4400M, AA1600M, etc.).

Overview

Available in a wide range of orifice sizes (.007″–.035″) and fan widths (4″–18″), these tips are crafted for high-performance coatings including solvent-based, waterborne, and abrasive materials.

Key Feature

  • Orifice sizes from .007″ up to .035″, ideal for fan widths of 4–18″ at 1000–2200 PSI

  • Optimized for the AA4400M and AA1600M airless spray guns

  • Available in UHMW or Tungsten Carbide fluid seats for different material types (abrasive vs fine coatings)Schweitzer & Crosson+1Schweitzer & Crosson+1

  • Reversible tip design for easy replacement and cleaning

  • Delivers consistent pattern quality and reduced overspray thanks to flat tip precision

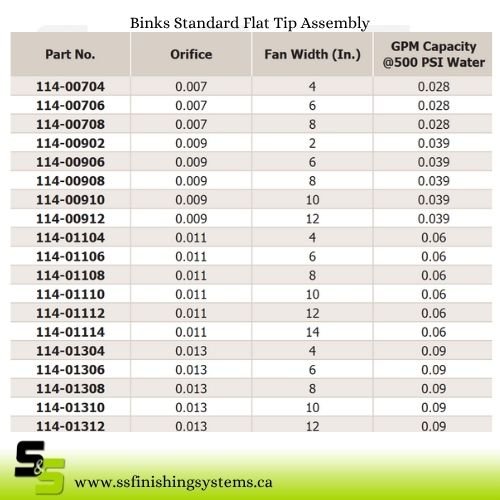

Available Variants

Part No. Description Orifice Fan Width (In.) GPM Capacity @500 PSI Water
114-00704 TIP ASSEMBLY 0.007 4 0.028
114-00706 TIP ASSEMBLY 0.007 6 0.028
114-00708 TIP ASSEMBLY 0.007 8 0.028
114-00902 TIP ASSEMBLY 0.009 2 0.039
114-00906 TIP ASSEMBLY 0.009 6 0.039
114-00908 TIP ASSEMBLY 0.009 8 0.039
114-00910 TIP ASSEMBLY 0.009 10 0.039
114-00912 TIP ASSEMBLY 0.009 12 0.039
114-01104 TIP ASSEMBLY 0.011 4 0.06
114-01106 TIP ASSEMBLY 0.011 6 0.06
114-01108 TIP ASSEMBLY 0.011 8 0.06
114-01110 TIP ASSEMBLY 0.011 10 0.06
114-01112 TIP ASSEMBLY 0.011 12 0.06
114-01114 TIP ASSEMBLY 0.011 14 0.06
114-01304 TIP ASSEMBLY 0.013 4 0.09
114-01306 TIP ASSEMBLY 0.013 6 0.09
114-01308 TIP ASSEMBLY 0.013 8 0.09
114-01310 TIP ASSEMBLY 0.013 10 0.09
114-01312 TIP ASSEMBLY 0.013 12 0.09
SKU Name

114-00704: 0.007 X 4", 114-00706: 0.007 X 6", 114-00708: 0.007 X 8", 114-00902: 0.009 X 2", 114-00906: 0.009 X 6", 114-00908: 0.009 X 8", 114-00910: 0.009 X 10", 114-00912: 0.009 X 12", 114-01104: 0.011 X 4", 114-01106: 0.011 X 6", 114-01108: 0.011 X 8", 114-01110: 0.011 X 10", 114-01112: 0.011 X 12", 114-01114: 0.011 X 14", 114-01304: 0.013 X 4", 114-01306: 0.013 X 6", 114-01308: 0.013 X 8", 114-01310: 0.013 X 10", 114-01312: 0.013 X 12"
